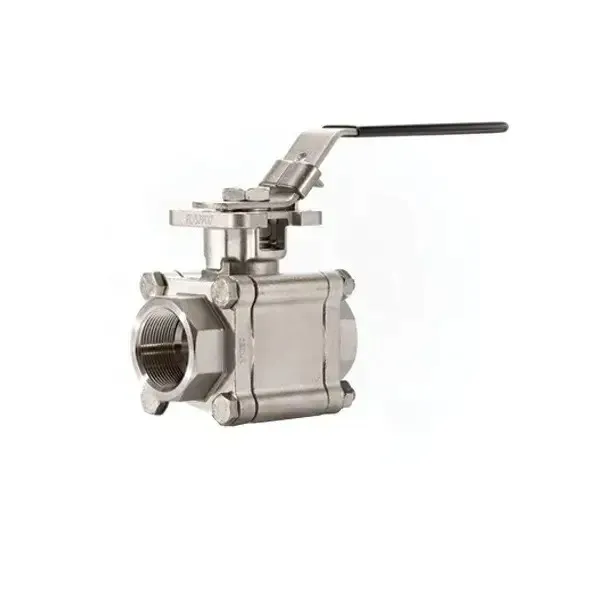

We are Manufacturer, Supplier, Exporter of Forged 3 ( Three ) Piece Ball Valves, Industrial Valves,
Industrial Actuated Valves, Industrial Valve Actuators, Industrial Valve Accessories, Forged Ball Valves and our setup is
situated in Belgaum, Karnataka, India.
We majorly target customers from ALL OVER INDIA.
These are suitable for applications in Oil And Gas Industries, Chemical Processing Industries, Pharmaceutical Industries, Food Industries, Beverage Industries, Glass Manufacturing Industry, Water Treatment, Wastewater Treatment, Process Control Industries, Automation Industries, Sanitary And Hygienic Applications, Power Generation Industries, Mining Industries, Mineral Processing Industries, Refining Industries, Petrochemical Industry. These valves are known for their durability and ability to handle high-pressure and high-temperature conditions.
| Sizes in mm(Inch) | Pressure Rating |
|---|---|
| 15(1/2") to 50(2") | Class 600 & 800 |
| Design Std. | BS EN ISO 17292 (BS 5351), API 6D. |
| Face to Face (For Flanged End Only) | ASME B16.10, EN 558-2. |
| Testing Std. | API 598, BS:6755-1, EN 12266-1 |
| Body & End piece Material | WCB, CF8, CF8M, Duplex etc. |
| Ball Material | 410, 304, 316, Duplex etc. |
| Stem Material | 410, 304, 316 etc. |
| Seat | PTFE / CFT / GFT / DELRIN / NYLON / PEEK / METAL |
| End Connection | Screwed, Socket Weld & Butt Weld. |
| End Detail | For SE – BS:21 (Parallel/ Taper) / ASME B1.20.1 (NPT) Threads. For SWE – ASME B16.11 For BWE – ASME B16.25 |
1. Modular Construction
Easy Disassembly: The valve is made up of three distinct pieces: the central body and two end pieces that are bolted together. This design allows for easy disassembly and maintenance without having to remove the valve from the pipeline.
2. Ease of Maintenance
Straightforward Servicing: The three-piece design facilitates straightforward maintenance and repair. The valve can be serviced by removing the end caps, allowing access to internal components like the ball, seats, and stem. This can be done without disturbing the valve's installation in the pipeline.
3. Versatility in Connections
Adaptable Connections: Three-piece ball valves can accommodate various types of end connections, including threaded, flanged, and welded. This versatility makes them suitable for a wide range of applications and pipe sizes.
4. High Pressure and Temperature Ratings
Robust Performance: This design can handle higher pressures and temperatures compared to some other types of ball valves. The robust construction ensures reliable performance under demanding conditions.
5. Reduced Leakage
Tight Sealing: The design helps in achieving a tight seal with minimal leakage, thanks to the quality of the seals and the precision of the assembly.
6. Customizability
Flexible Options: These valves can be customized with different end connections, materials, and features such as actuators, handles, and position indicators, making them adaptable to specific requirements.
7. Durability
Heavy-Duty Strength: The three-piece design typically offers greater durability and strength, making it suitable for heavy-duty applications and environments where high reliability is essential.
8. Cost Considerations
Long-Term Savings: Although three-piece ball valves can be more expensive than two-piece valves, their ability to be serviced and repaired on-site can offset the initial cost by reducing downtime and maintenance expenses.
9. Alignment
Easy Assembly: The three-piece design allows for easier alignment of the valve components during assembly, reducing the risk of misalignment and potential issues during operation.
