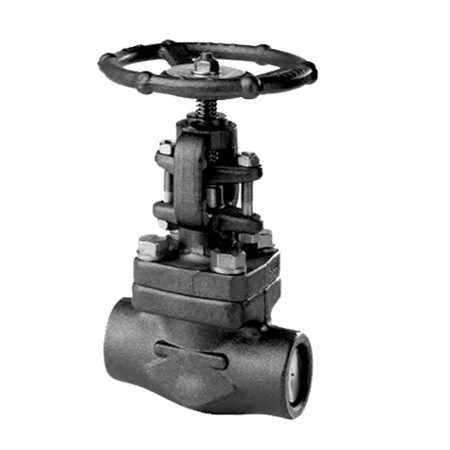

We are Manufacturer, Supplier, Exporter of Forged Globe Valves, Flanged End, Screwed End, Socket End, Butt
Weld End Forged Globe Valves, Industrial Valves, Industrial Actuated Valves, Industrial Valve Actuators,
Industrial Valve Accessories and our setup is situated in Belgaum, Karnataka, India.
We majorly target
customers from ALL OVER INDIA.
These are widely used in Process Industries like Water Treatment Systems, Wastewater Treatment Systems, Oil And Gas Industries, Petrochemical Industries, Chemical Processing Industries, Power Generation, Water Distribution And Utilities, Pulp And Paper Industries, Food Industries, Beverage Industries, Power Plant, Pharmaceutical Industries, Manufacturing Industries, Glass Manufacturing Industry, Steam Systems, Refining Industries, Processing Industries, Mining Industries, Mineral Processing Industries, HVAC Systems, Chemical Industries.
| Sizes in mm(Inch) | Pressure Rating |
|---|---|
| Screwed, Socket & Butt Weld Ends | |
| 15 (1/2") to 50 (2") | Class 800 & 1500 |
| 15 (1/2") to 25 (1") | Class 2500 |
| Flanged Ends ( Weldon Flanges) | |
| 15 (1/2") to 50 (2") | Class 150, 300 & 600 |
| Design Std | API 602, BS 5232 |
| Face to Face | ASME B16.10 |
| Testing Std. | API 598/EN 1266-1 |
| Body & Bonnet | A105, F11, F22, F5, F9, F304 & F316 |
| Wedge | CA15, CF8, CF8M |
| Stem | 410, 304, 316 |
| Seat | 410, 304, 316 |
| End Connection | Flanged, Screwed, Socket weld Ends |
| End Detail | For SE – BS:21 (Parallel/ Taper) / ASME B1.20.1 (NPT) Threads, SWE B16.11 |
Regulation of Flow: Globe valves are designed for precise flow control. Their construction allows for throttling of the flow, which means they can adjust the flow rate more accurately compared to other valve types like gate valves.
Valve Body Design: The body of a globe valve is typically spherical in shape with an internal baffle that divides the flow path into two separate streams. This design helps to control the flow more effectively.
Disc and Seat: The valve has a disc that moves up and down to either open or close the flow path. The disc makes contact with the seat, which is the part that actually controls the flow rate by providing a sealing surface.
Flow Direction: Globe valves can handle flow in both directions but are usually more efficient in one direction, depending on the design. However, they are not as favorable as some other valves for bi-directional flow.
Pressure Drop: They typically cause a significant pressure drop due to the changes in flow direction and the restriction provided by the disc and seat. This is a trade-off for their excellent flow control capabilities.
Applications: Due to their precise control and throttling abilities, globe valves are often used in applications requiring frequent adjustments or fine control of flow rates, such as in water treatment facilities, chemical processing, and power plants.
Maintenance: Globe valves usually require more maintenance compared to simpler valve types due to their complex internal mechanisms. Regular inspection and maintenance are needed to ensure proper operation.
Temperature and Pressure Ratings: Globe valves are available in various materials and designs to handle a wide range of temperatures and pressures, making them versatile for different applications.
